Forge Toyota Yaris GR Inlet Duct
Forge Toyota Yaris GR Inlet Duct
Forge Toyota Yaris GR Inlet Duct
Forge Toyota Yaris GR Inlet Duct
Forge Toyota Yaris GR Inlet Duct
Forge Toyota Yaris GR Inlet Duct
Forge Toyota Yaris GR Inlet Duct

Forge Toyota Yaris GR Inlet Duct

Sale price£399.95

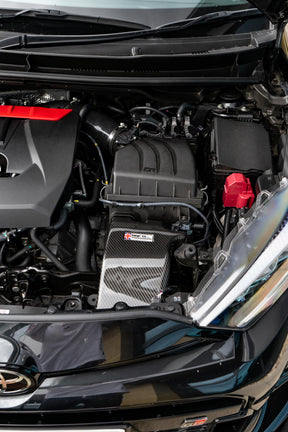

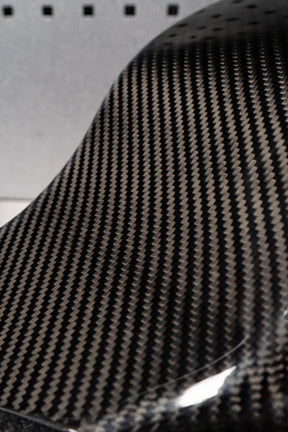

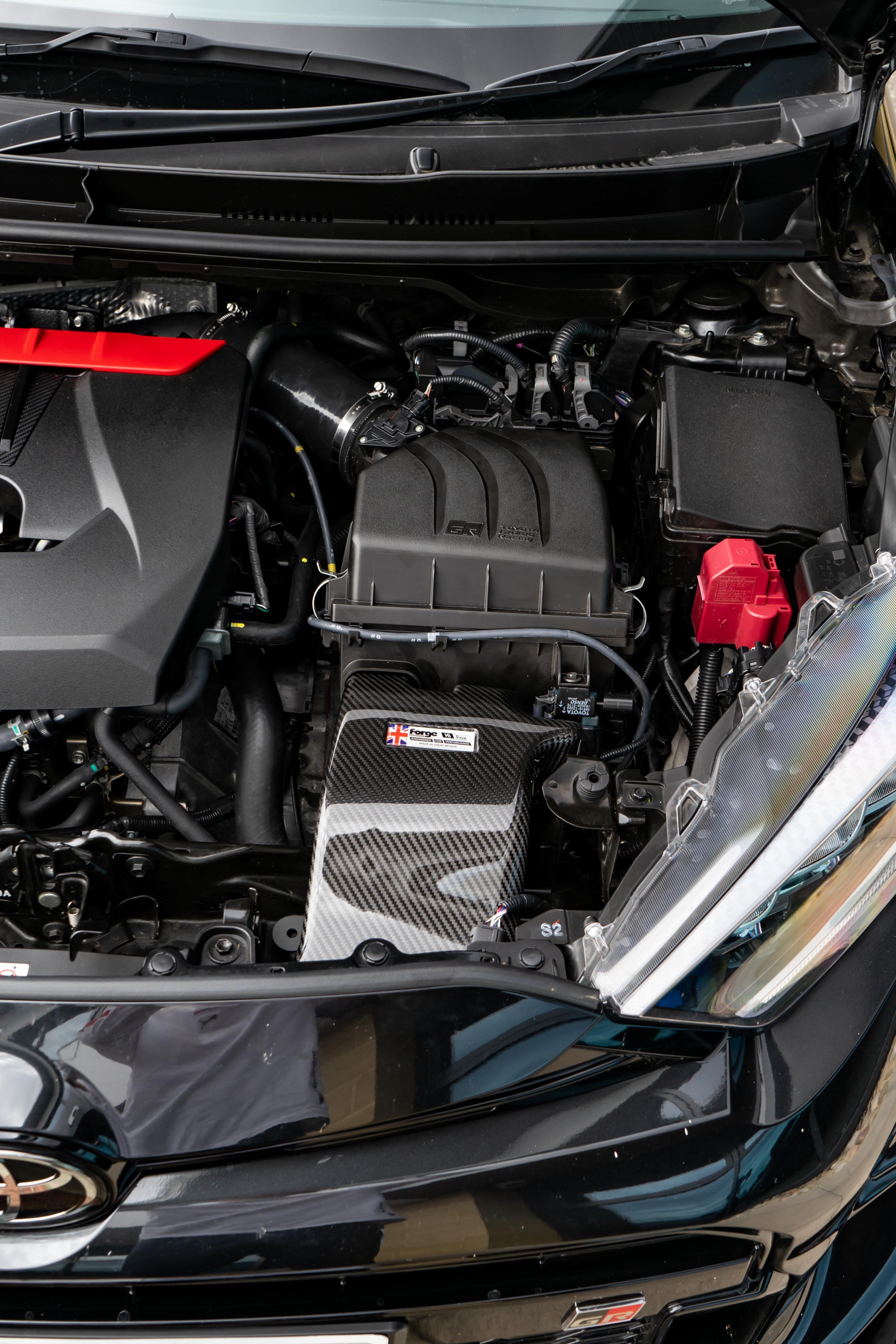

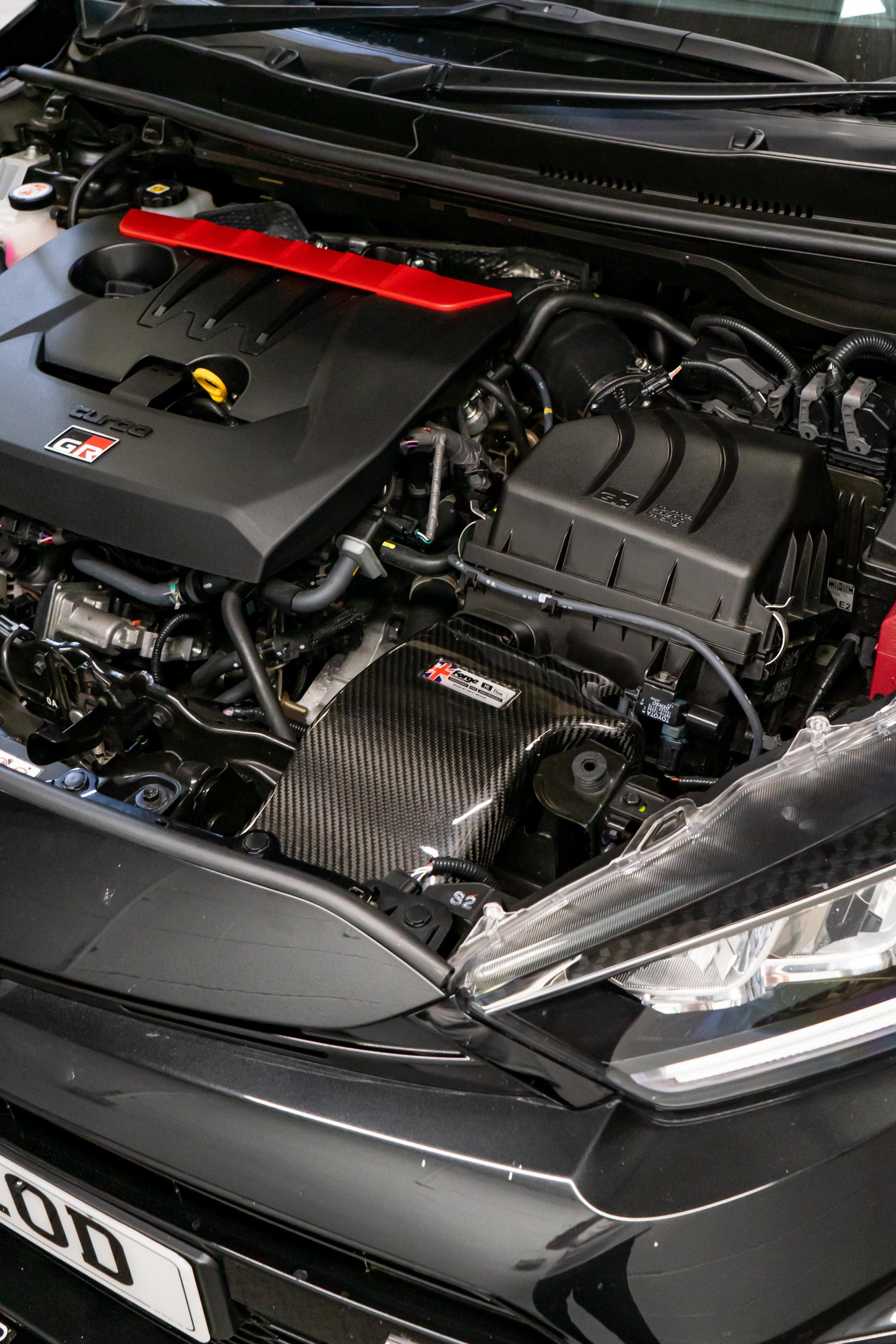

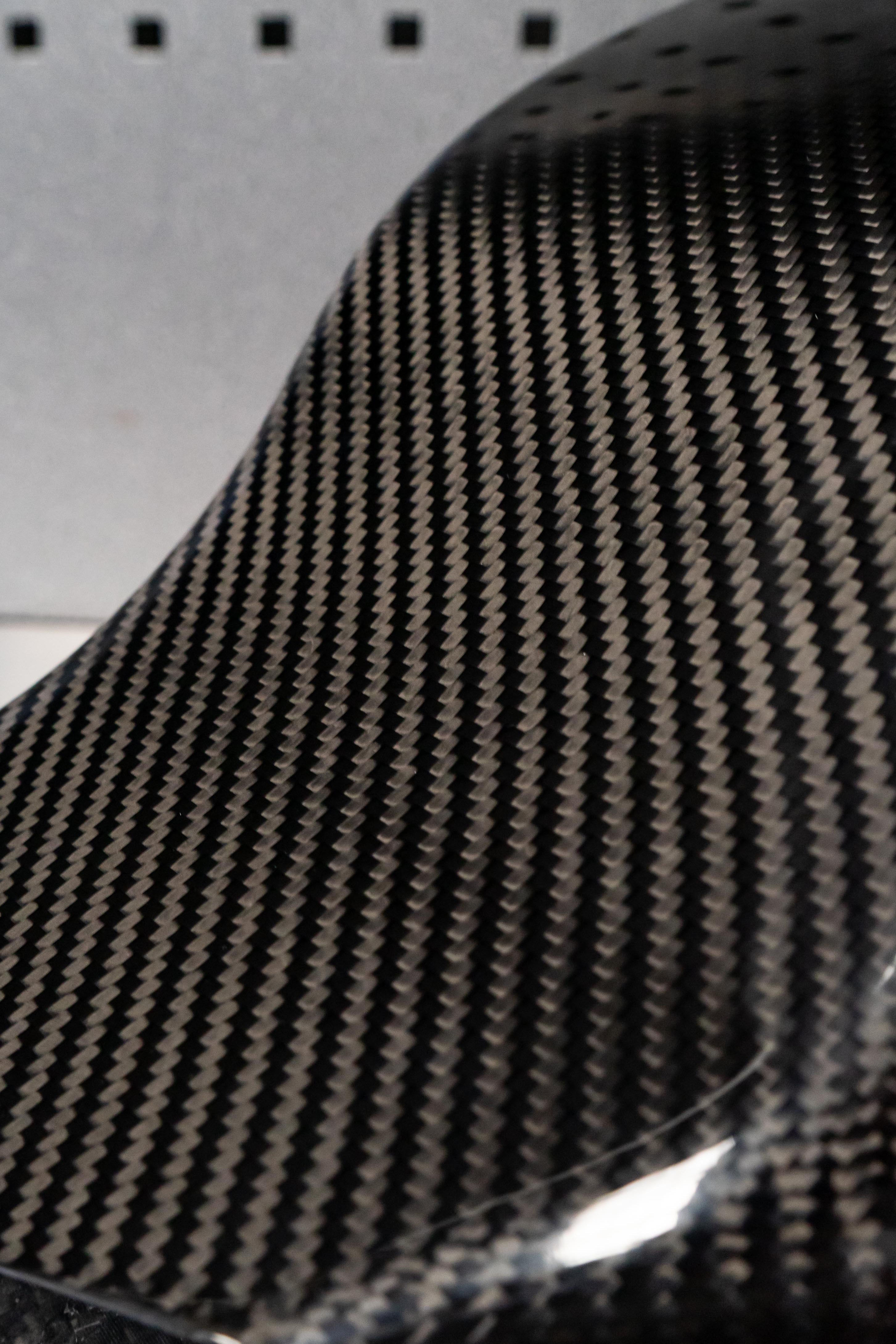

After discussions with many GR Yaris owners about airbox modifications, Forge Motorsport are proud to release the Toyota Yaris GR Inlet Duct. The Forge inlet duct allows you to add an aesthetically pleasing carbon fibre part to your Yaris GR’s engine bay and help keep your inlet temperatures down during spirited driving and whilst on the track or rally stage.

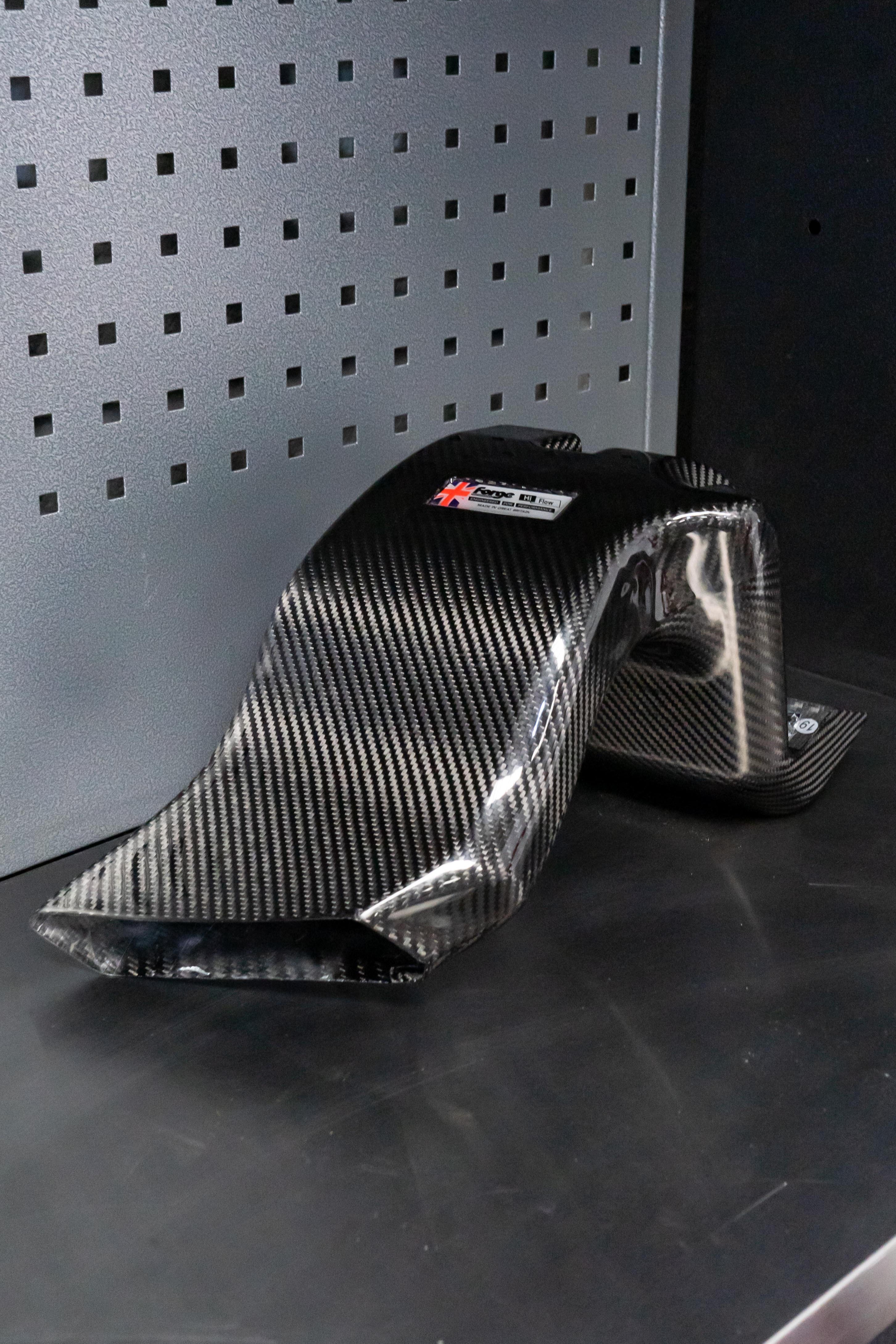

By utilising 3D scans and SolidWorks CAD, our development team have been able to optimise the size of the inlet duct, creating an increase in uninterrupted cold air to be scooped into the stock airbox. 3D printed test parts were used alongside CAD simulation to ensure the optimum size and geometry. This inlet duct performance car part is much larger than stock with a close fit to the front bumper and airbox to ensure that the heat from the engine causes minimal effect.

During testing on track days, the original duct caused inlet air temperatures to be heavily influenced by heat soak and fluctuated dramatically. Meanwhile the Forge inlet duct kept the inlet air temperatures not only reduced but at a more consistent temperature. A reduced consistent temperature is of great importance because any high temperature peaks will cause the ECU to retard the ignition and reduce the power you have available. The Forge inlet duct design incorporates a free-flowing path to both the upper and lower opening of the airbox, whereas the stock design has no flow management to the lower opening and the upper is small and not fully sealed. It is worth understanding that the lower opening is of far greater importance to the performance of your Yaris GR. There is a vacuum operated flap which is activated when under full throttle conditions, therefore the Forge Motorsport Inlet Duct ensures that your Yaris is getting colder directed air when the engine needs it the most.



Option:

Option

Quantity:

Before Purchasing

Due to the amount of bespoke orders it is not always possible for us to keep every item in stock at all times. If you require the item urgently please contact us to check stock before purchase.

Don't be afraid to contact us and we will be able to confirm if they are the correct parts you are looking for.

You can contact us through our Live chat or Contact form.

Its not always possible for us to have every single make and model listed however it doesn't mean we can't supply parts for your car.

If you can't see your can please feel free to email us through our contact form or through our live chat and we will help you as best as we can.

We offer fitting on all our parts.

If you would like your parts fitting please contact us at info@motechperformance.co.uk before you order online.
