BMW X5/X6 G05/G06 2018+ Eventuri Air Intake
BMW X5 M50

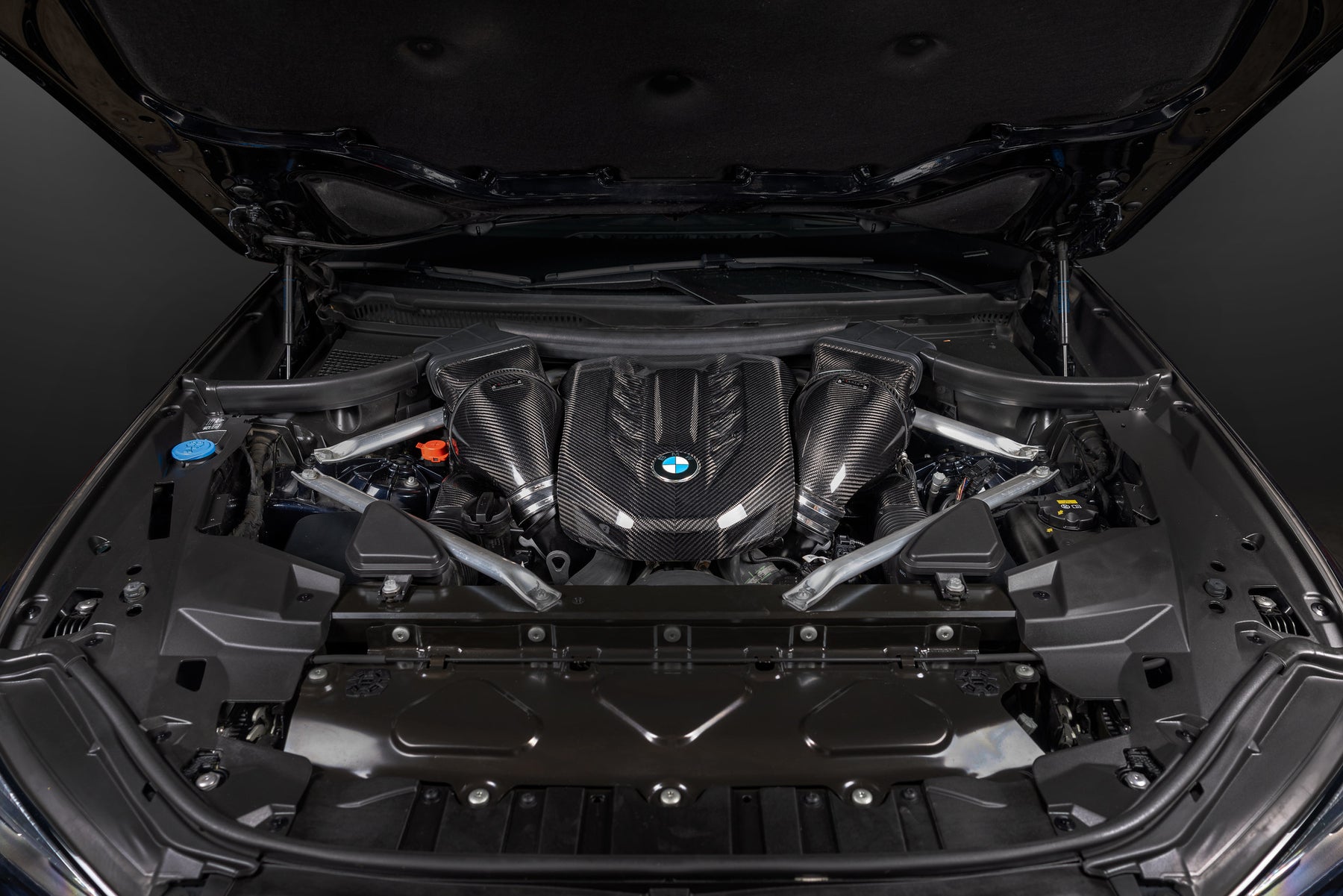

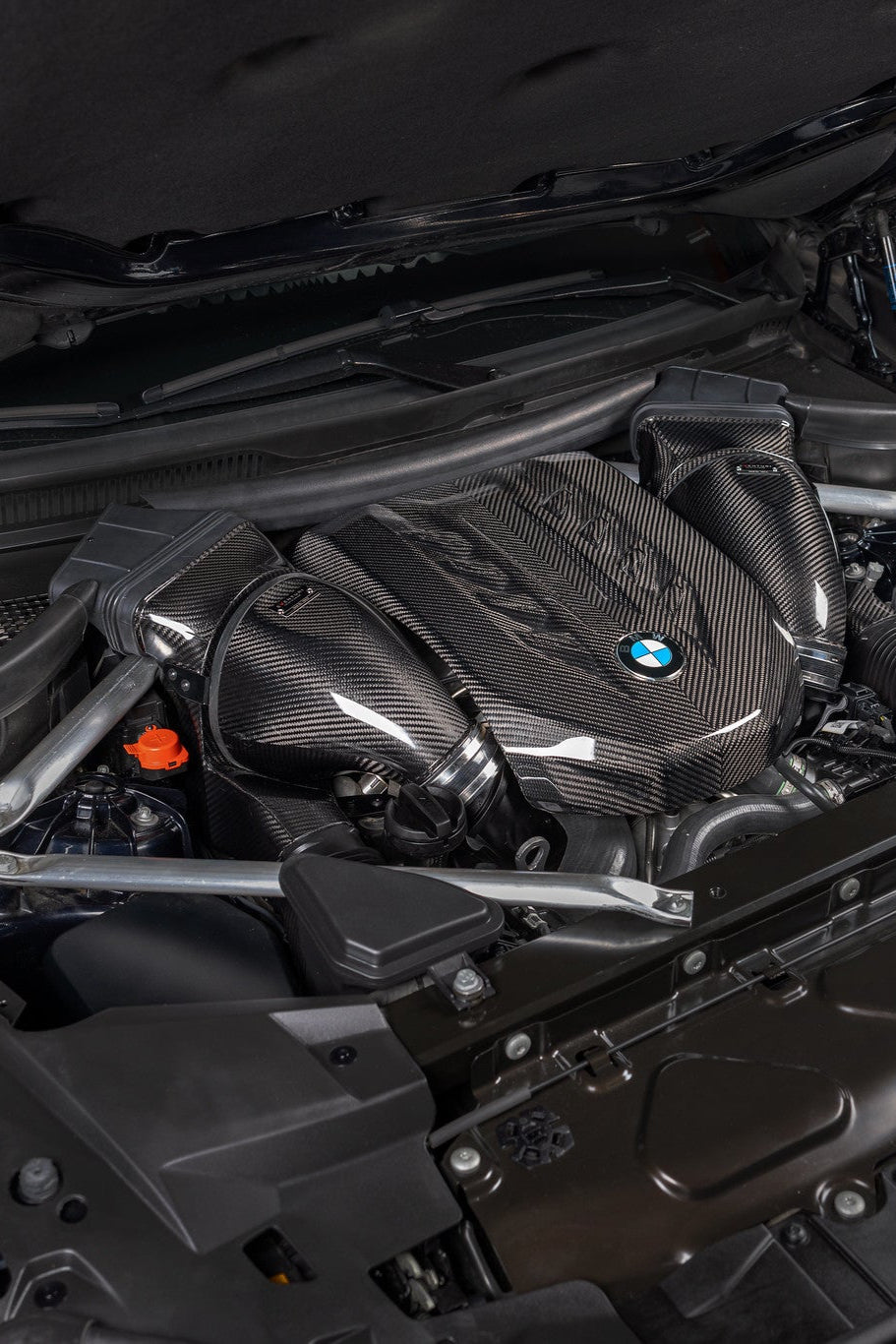

Introducing the Eventuri X5 G05 M50i intake. This intake is an adaptation of the X5M intake which was a complete redesign of the stock airboxes with the aim of reducing pressure loss while increasing the flow rate and keeping inlet temperatures low. With the stock cold air feeds at the front of the car and the turbo inlets facing the rear of the car, the airflow has to negotiate a 180 degrees turn through each airbox resulting in a flow restriction. To overcome this, they have introduced an additional cold air feed from the scuttle panel, which results in a more direct flow path to the turbo inlets. The additional feeds allow the intake to have a higher flow rate whilst keeping IATs low and have an additional benefit of de-restricting the sound of the turbos. With the intake openings now facing the cabin, the turbo flutter and pressure release sounds are clearly audible, elevating the driving experience to another level.
The Eventuri Difference

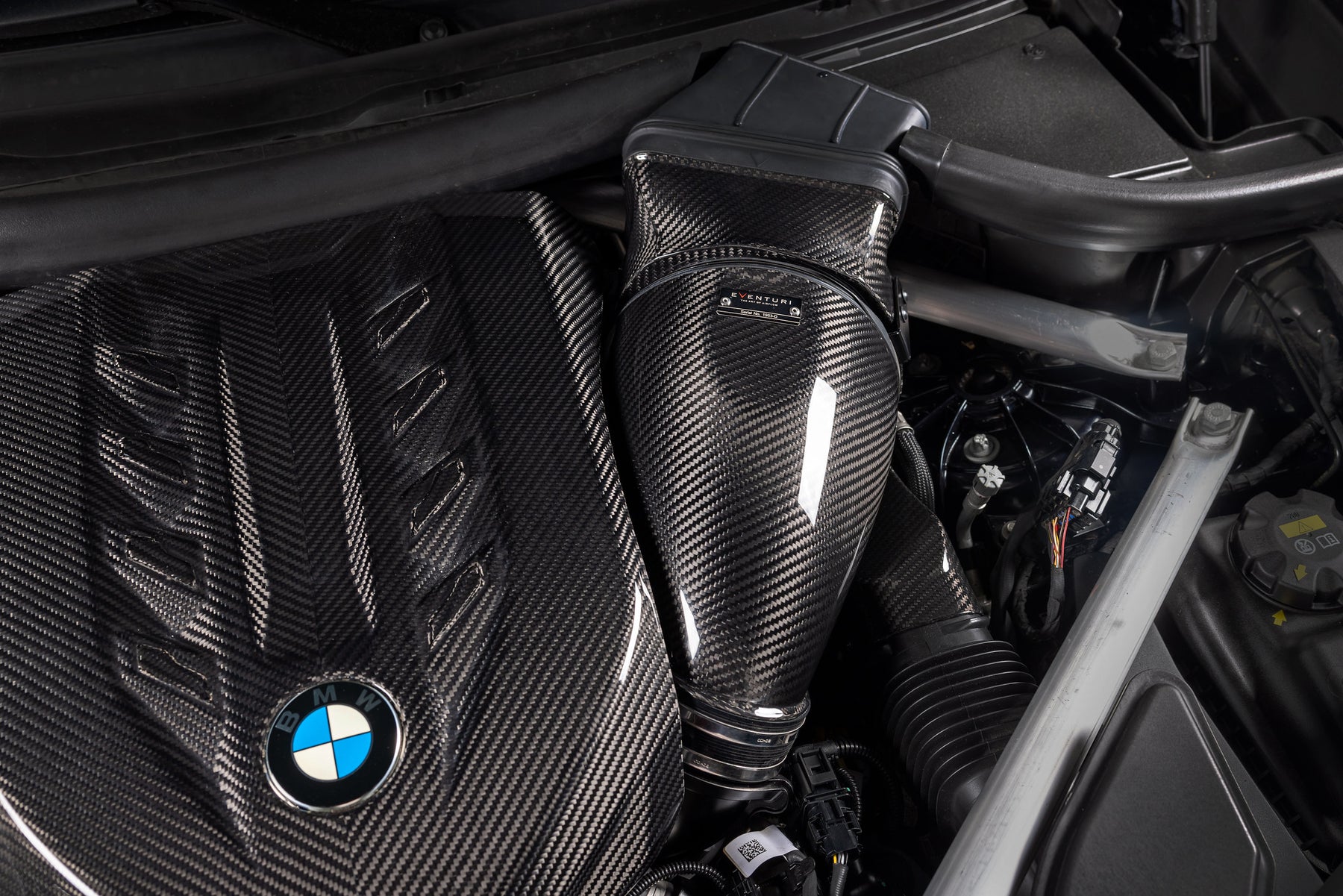

The X5 M50i Eventuri system uses Patented Carbon Fiber Housings with the Gen 2 bespoke filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo.
The Eventuri X5, X6 M50i intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

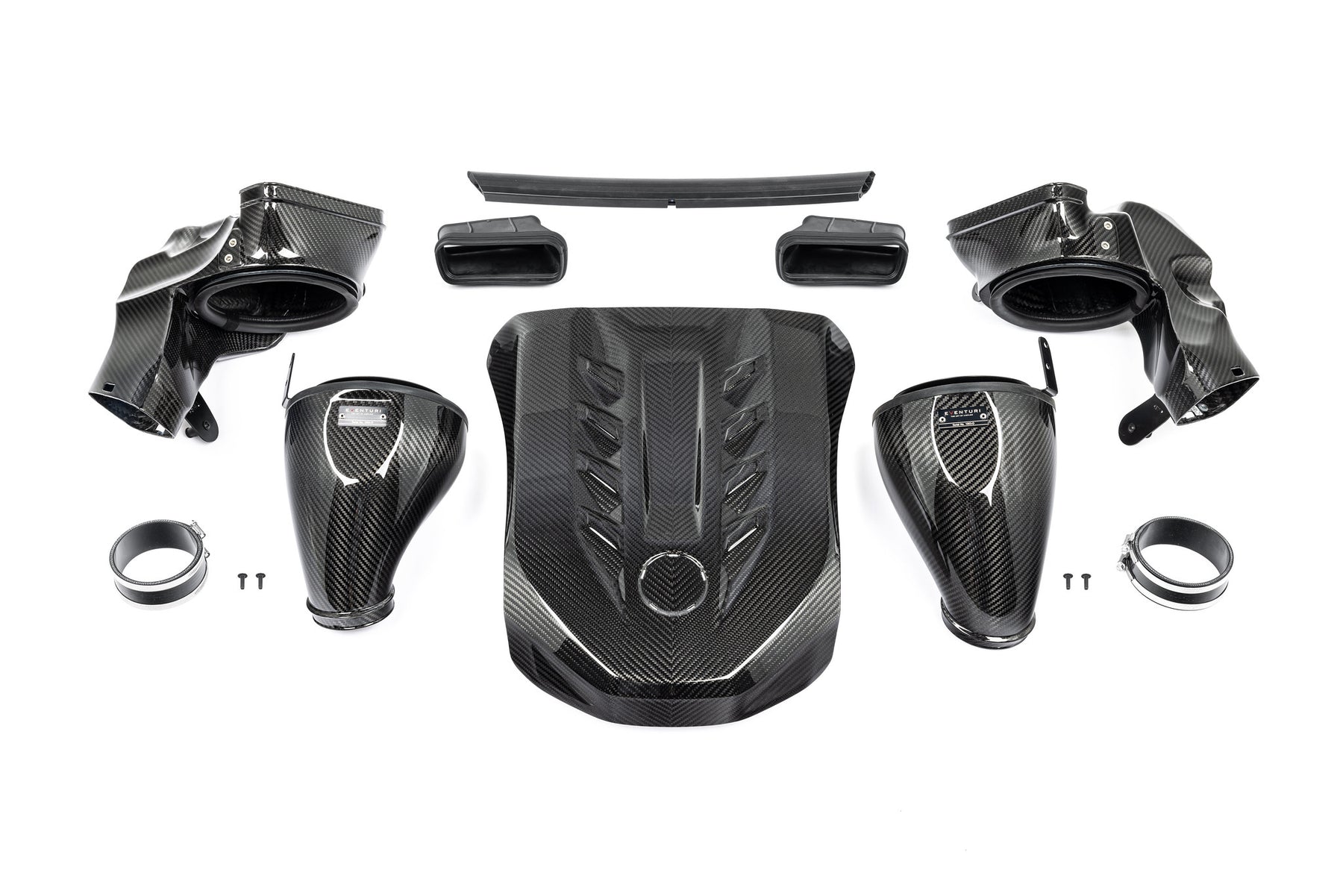

Each intake system consists of:

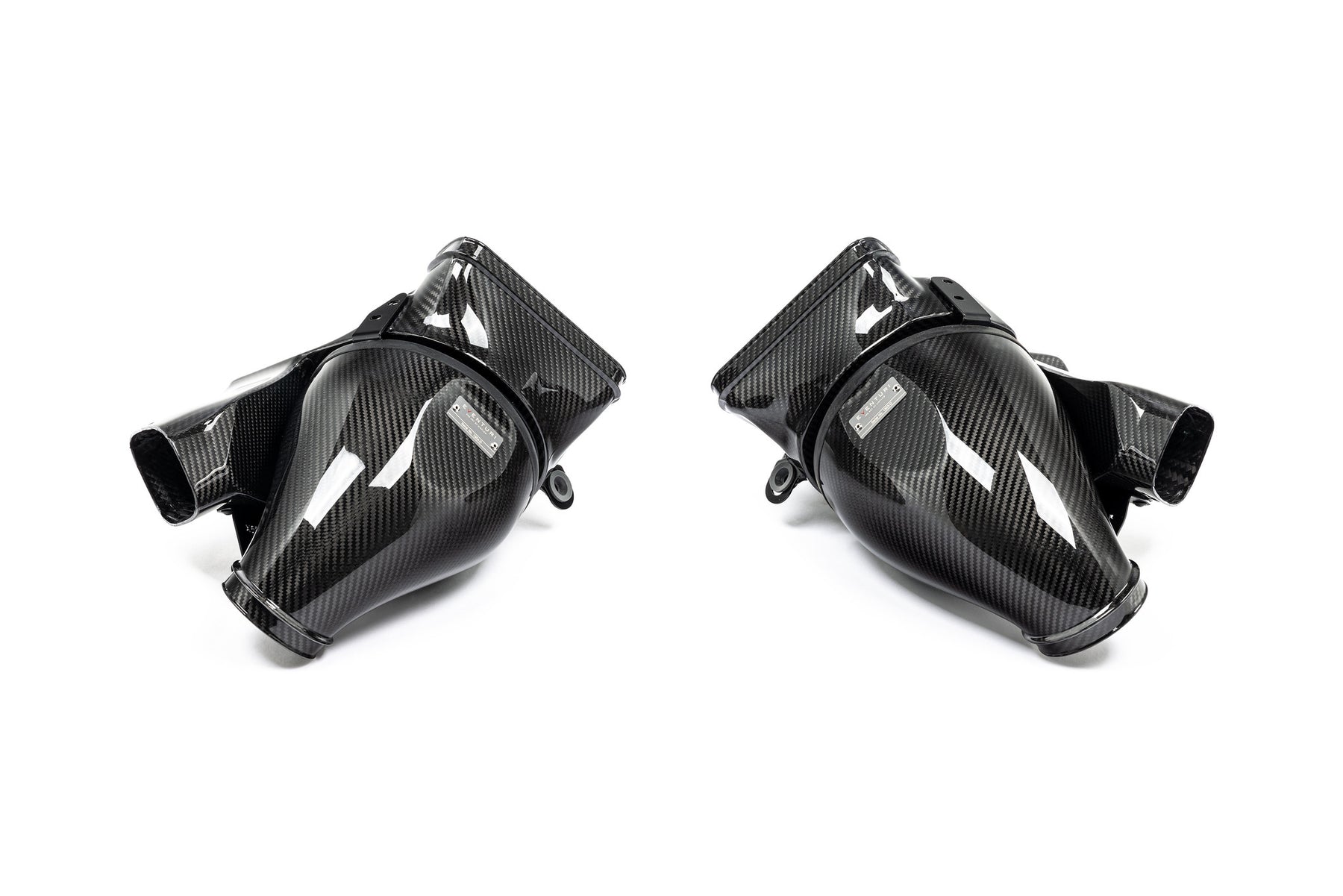

- 2 x Carbon Fiber Patented Venturi Filter Housings
- 2 x Bespoke High Flow Dry Cone Filters
- 2 x Carbon Fiber Twin Air Ducts
- Carbon Fiber Engine Cover
- 2 x EPDM Rear Air Feeds
- Silicon Couplers
- CNC Machined Bracket Mounts
Since the filter housings have been designed for maximum volume, the OEM engine cover no longer fits into place. So Eventuri have produced a redesigned cover which finishes off the engine bay, covering the engine hardware for a refined aesthetic. They have allowed for gaps between the engine cover and the intakes so that the heat coming off the engine can easily dissipate rather than soak into the intake system.
The complete system comes together to provide an intake which improves on the stock airbox in performance, aesthetics and sound.
Option
Before Purchasing
Due to the amount of bespoke orders it is not always possible for us to keep every item in stock at all times. If you require the item urgently please contact us to check stock before purchase.
Don't be afraid to contact us and we will be able to confirm if they are the correct parts you are looking for.
You can contact us through our Live chat or Contact form.
Its not always possible for us to have every single make and model listed however it doesn't mean we can't supply parts for your car.
If you can't see your can please feel free to email us through our contact form or through our live chat and we will help you as best as we can.
We offer fitting on all our parts.
If you would like your parts fitting please contact us at info@motechperformance.co.uk before you order online.
