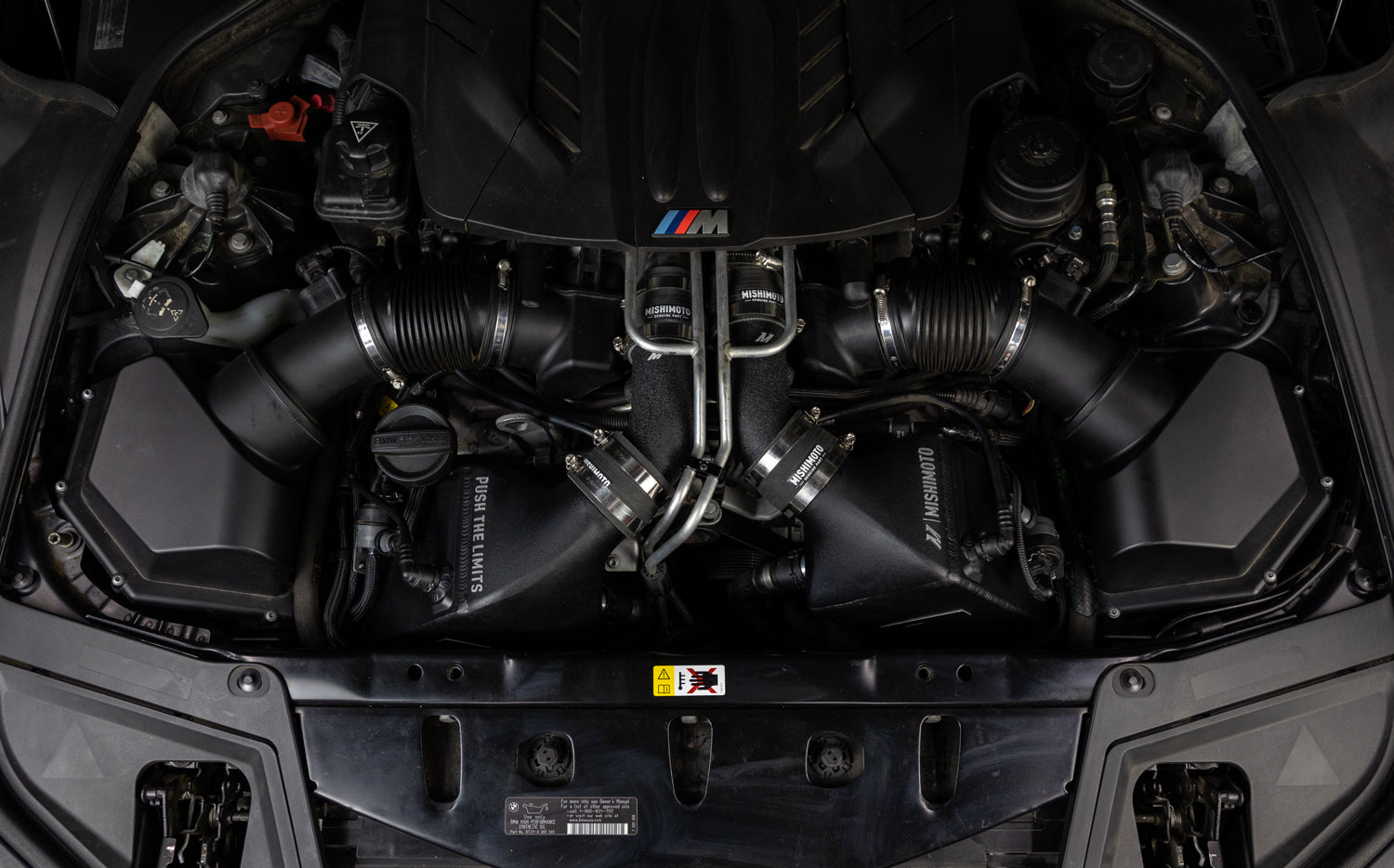

2012-2016 BMW F10 M5 Intercooler Kit, Micro Wrinkle Black
The BMW F10 M5 power and handling statistics are completely mind-blowing for a car tipping the scales at over two tons. The S63 twin-turbo V8 is underrated from the factory and responds well to tuning and bolt on modifications. Calling it the ultimate super sedan would not do this car justice. Heavy, high horsepower vehicles are also very good at generating heat. This added heat often affects the engine cooling, charge air cooling, or oil cooling systems. Since we already tackled the oil cooling system with our F10 M5 performance oil cooler, it was time to turn our attention towards the liquid-to-air intercooler system.----Our engineering team designed intercooler and pipe kit that offers increased volume, improved cooling efficiency, and superior airflow compared to the factory coolers. We started by increasing core volume by 37-percent compared to the stock coolers. Using our extensive knowledge of heat transfer, our team designed an extremely efficient bar-and-plate core which provides optimal cooling and a 10-percent reduction in airflow restriction. During our in-depth testing, we recorded 24-degree drops in intake temperatures and power gains of 25 WHP/22 WTQ on our stage-1-tuned M5. We saw increases in timing as a result of cooler intake temperatures, which provided more consistent, higher power output.----As with all our products, this Mishimoto BMW F10 M5 Intercooler Kit includes our signature lifetime warranty for a lifetime of performance.
Features & Benefits
- Direct fit for the 2012-2016 BMW M5 and 2012-2016 BMW M6
- Dyno-proven power and torque gains of 25 WHP and 22 lb-ft
- 37-percent increase in core volume for improved cooling capacity
- 24-degree reduction in intake temperature allows for improved ignition timing and more power
- Improved heat-soak resistance allows for more time on the throttle
- 10-percent less restrictive than stock for improved power potential

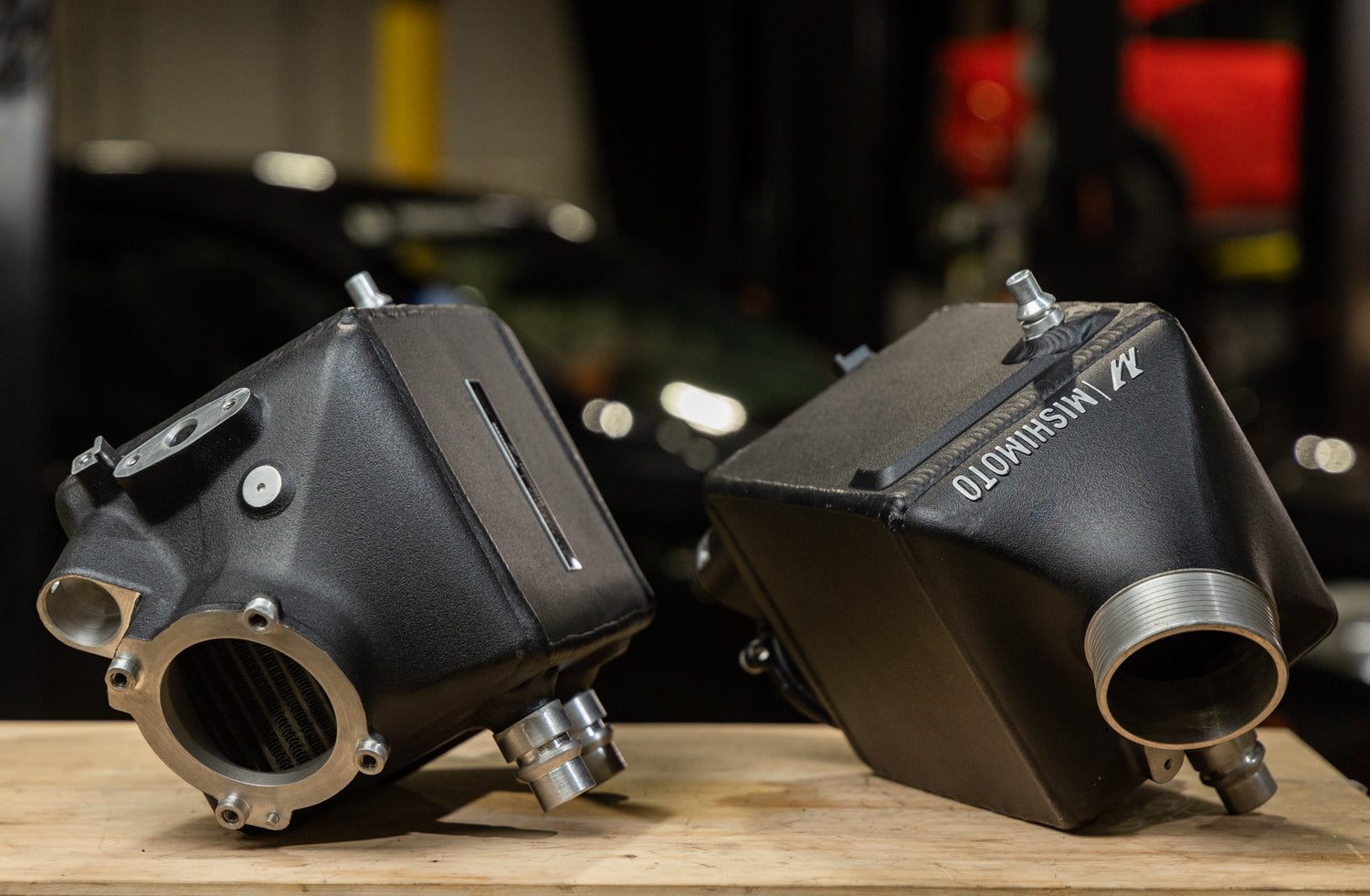

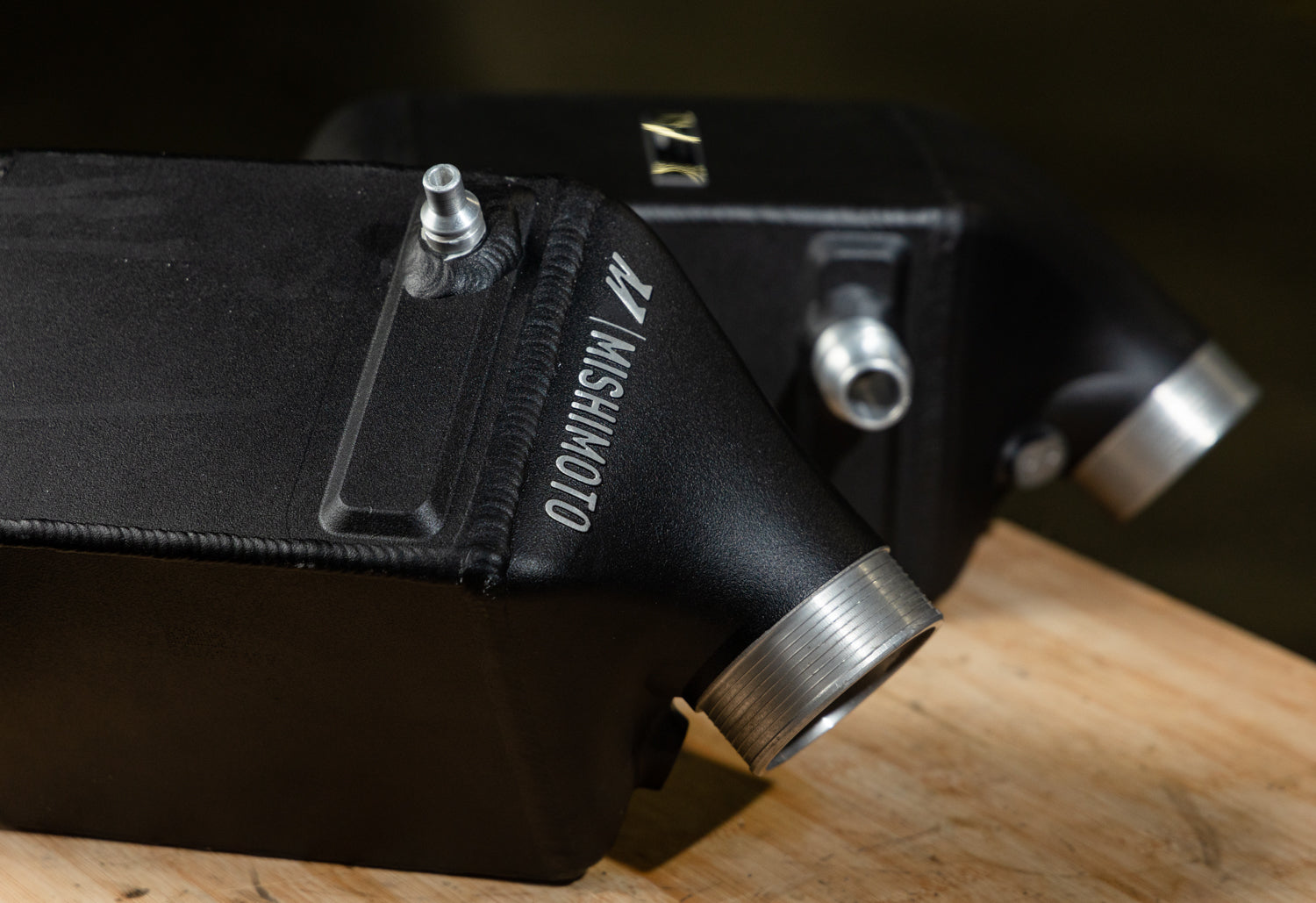

- Durable cast aluminum end tanks won't flex or crack under high boost

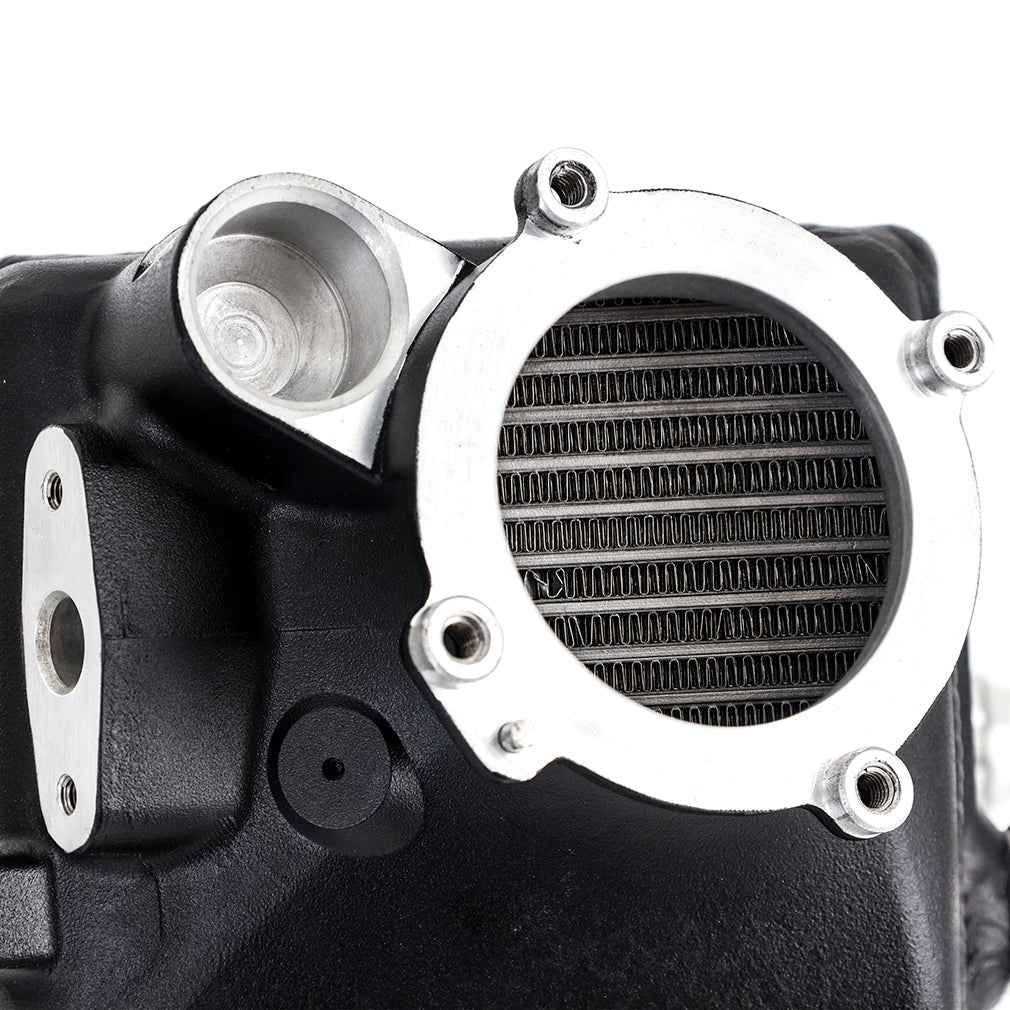

- Efficient bar-and-plate core provides maximum cooling efficiency

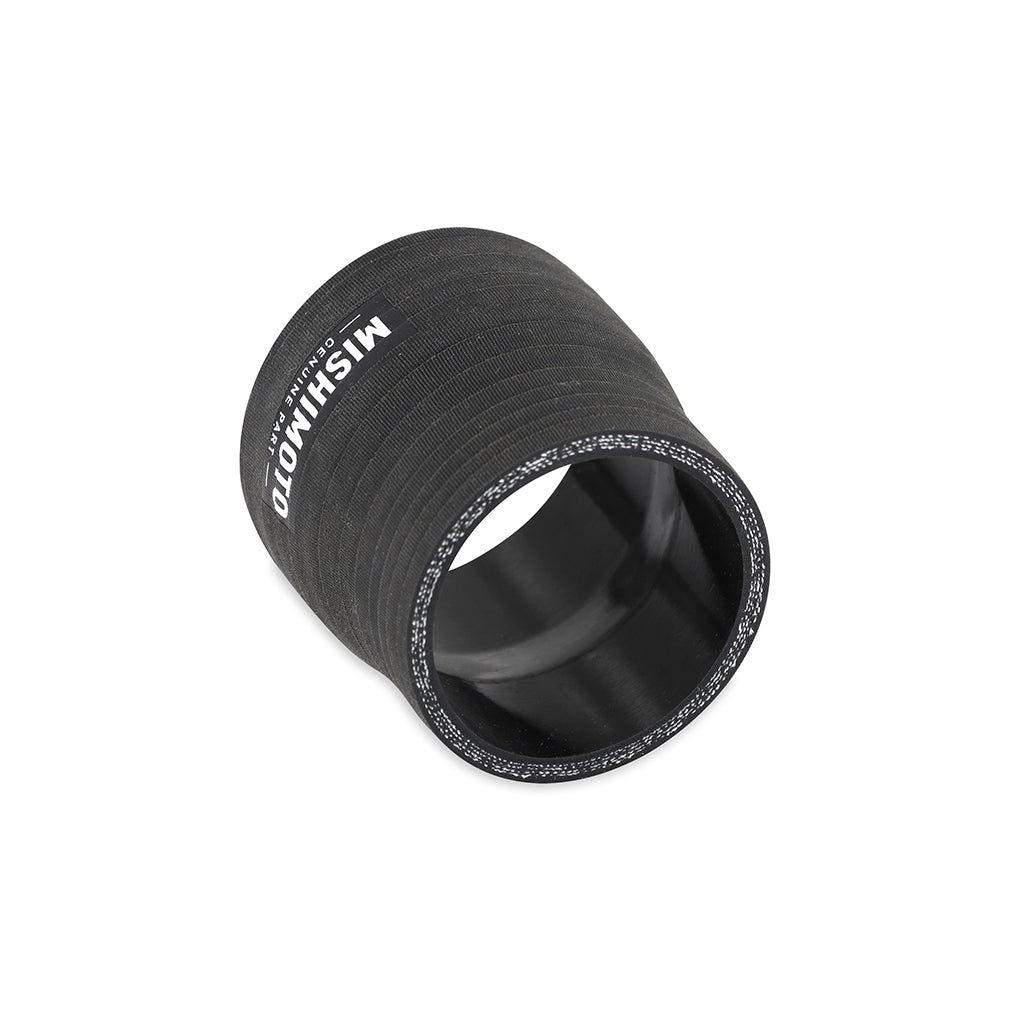

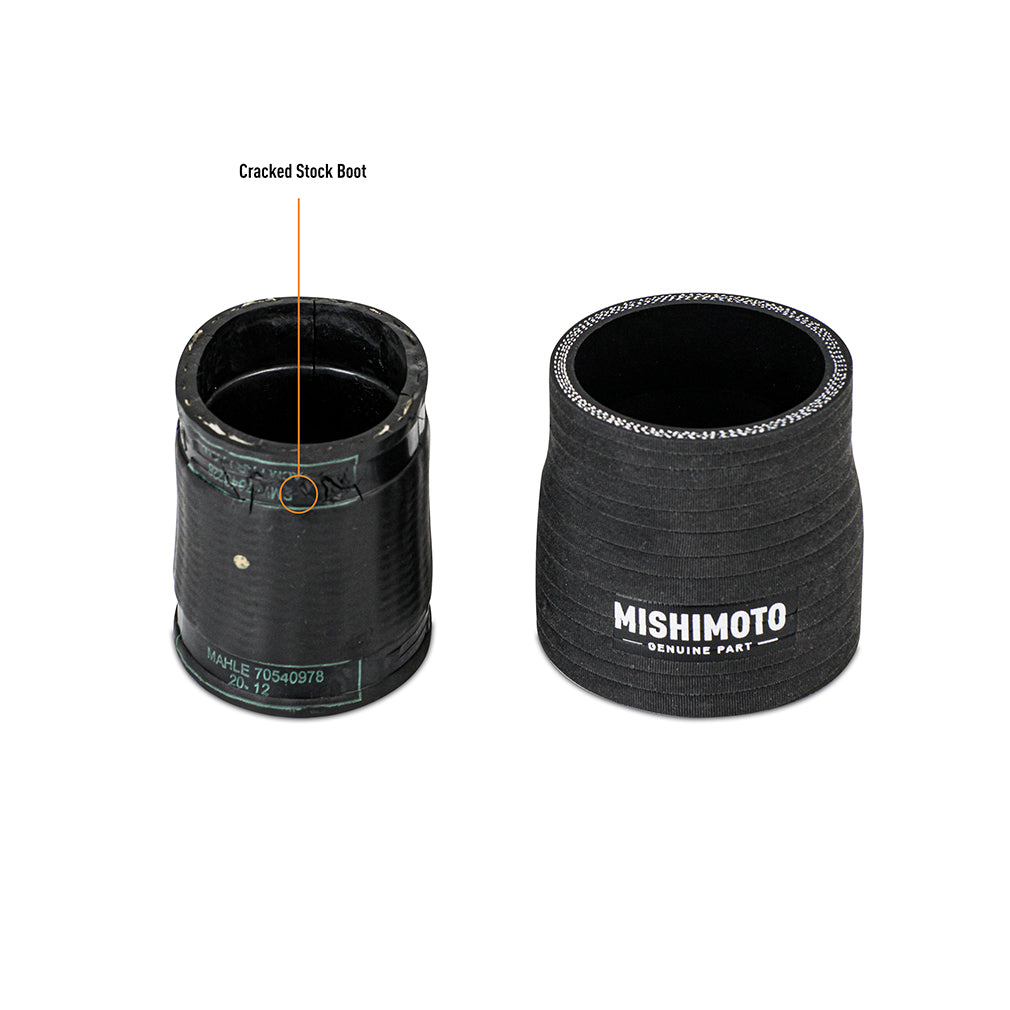

- Included silicone couplers provide enhanced durability and will not degrade or crack over time
- Patent Pending
- Mishimoto Lifetime Warranty
- Micro-wrinkle black powder coated finish provides corrosion resistance and stealthy aesthetic
Tech Specs

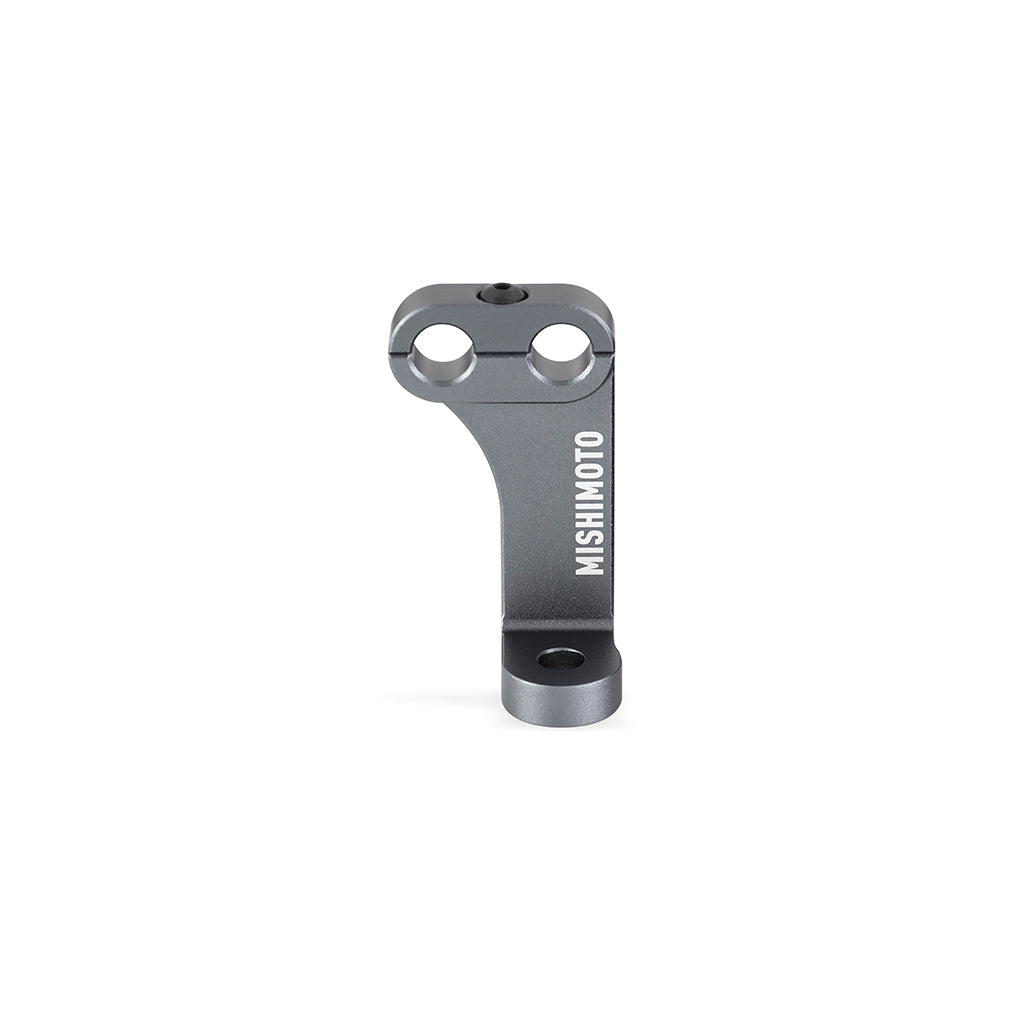

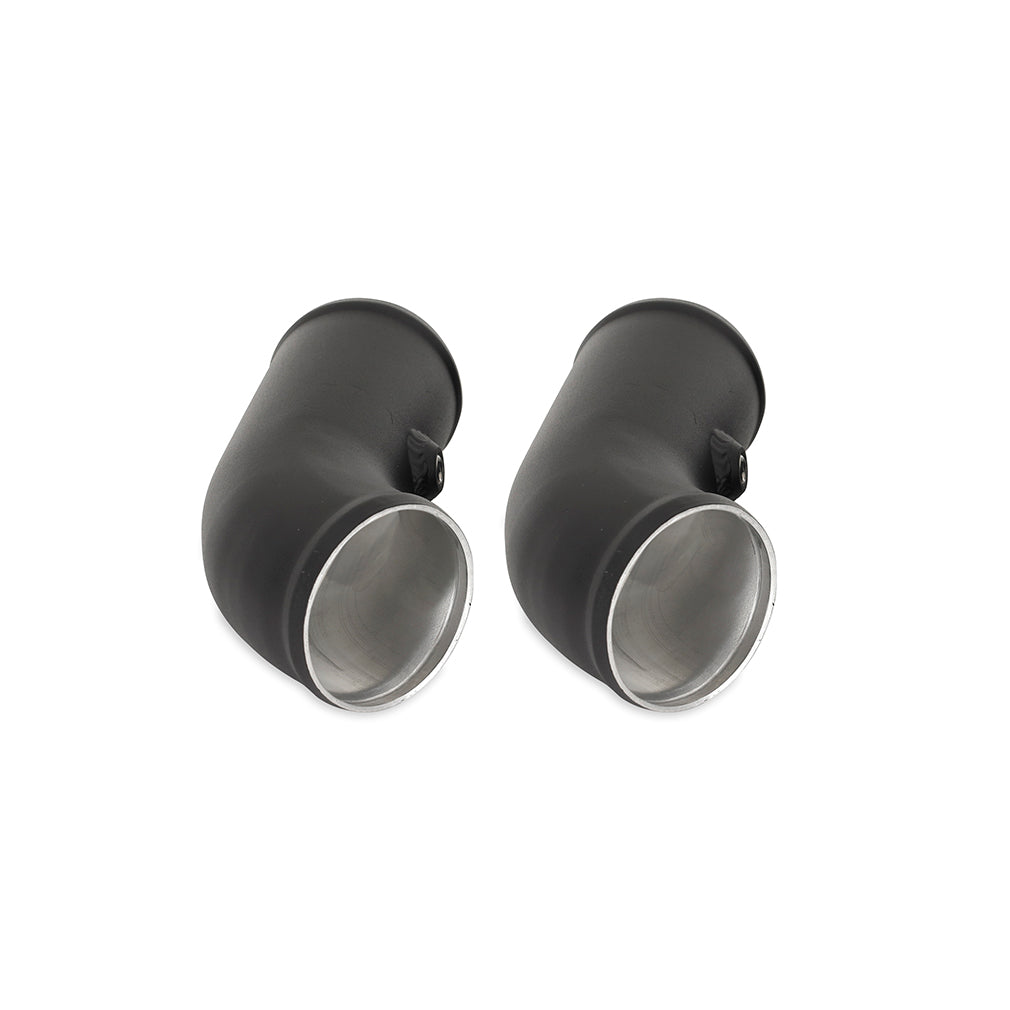

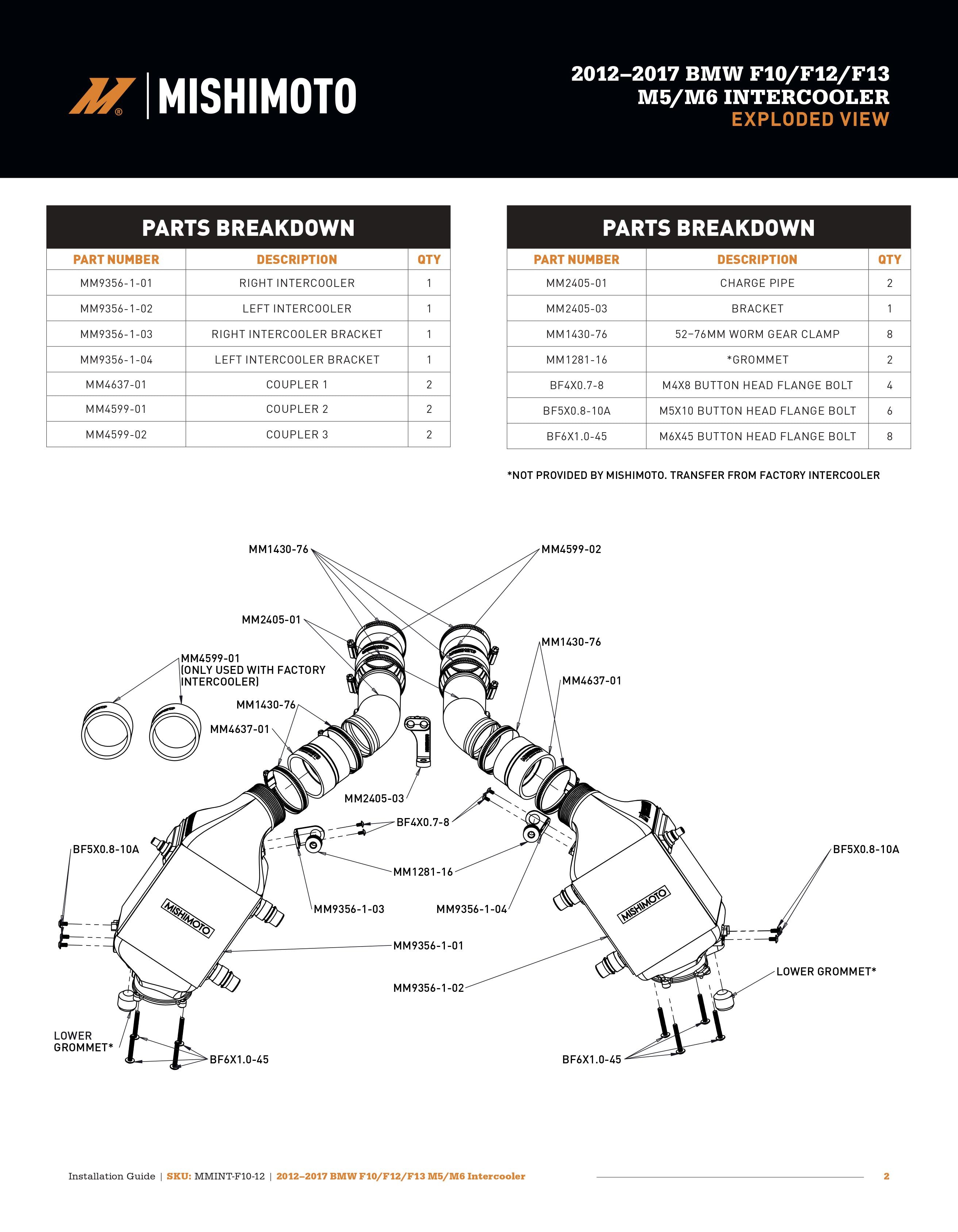

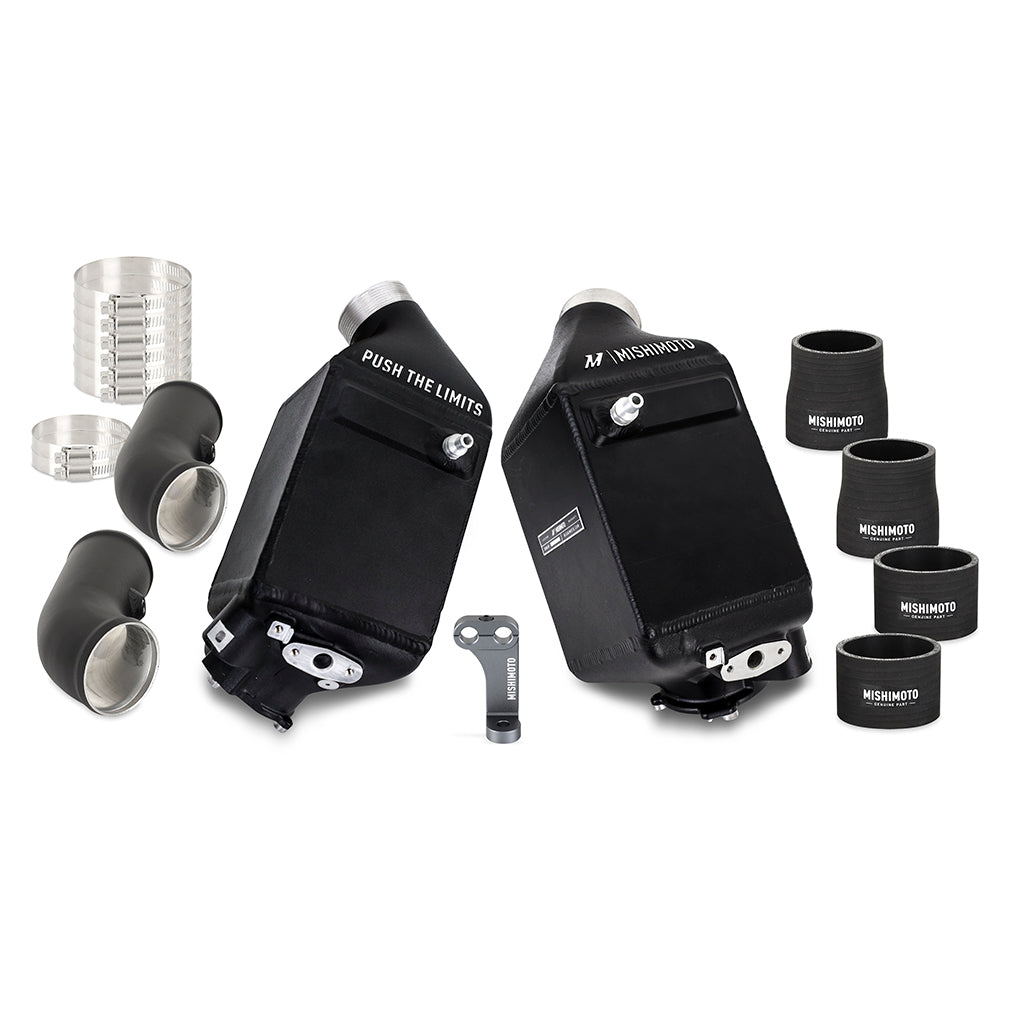

| Includes | (1) Drivers Side Intercooler--(1) Passenger Side Intercooler--(2) Intercooler Brackets--(2) Mounting Grommets--(2) Coolant Hoses--(6) Coolant Hose O-Rings--(2) Intercooler Pipes--(1) Intercooler Pipe Bracket--(4) Intercooler Pipe Couplers--(4) Worm Gear Clamps-- Mounting Hardware-- Mishimoto Lifetime Warranty |
|---|---|
| Core Thickness (in) | 5.5 |
| Core Length (in) | 6.9 |
| Core Height (in) | 5.7 |
Fitment
- 2012-2016 BMW M5
- 2012-2016 BMW M6
